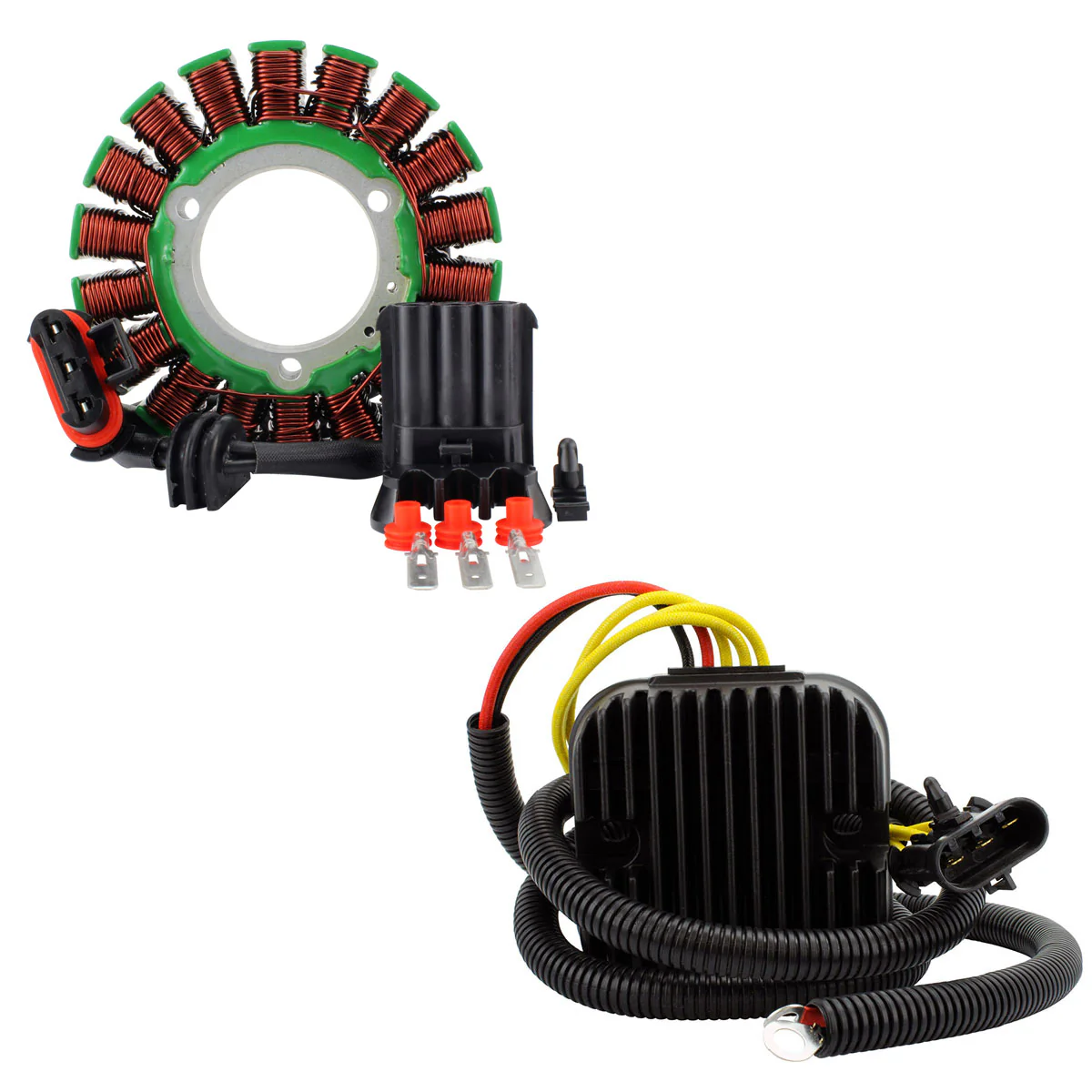

Kit Generator Stator + Mosfet Voltage Regulator for Polaris Sportsman 325 ETX / 450 HO / 570 X2 2014-2020 | # 4012678

Brand New aftermarket Stator + Mosfet Voltage Regulator Rectifier Kit

• Direct replacement to your original unit
• All shipped products are tested

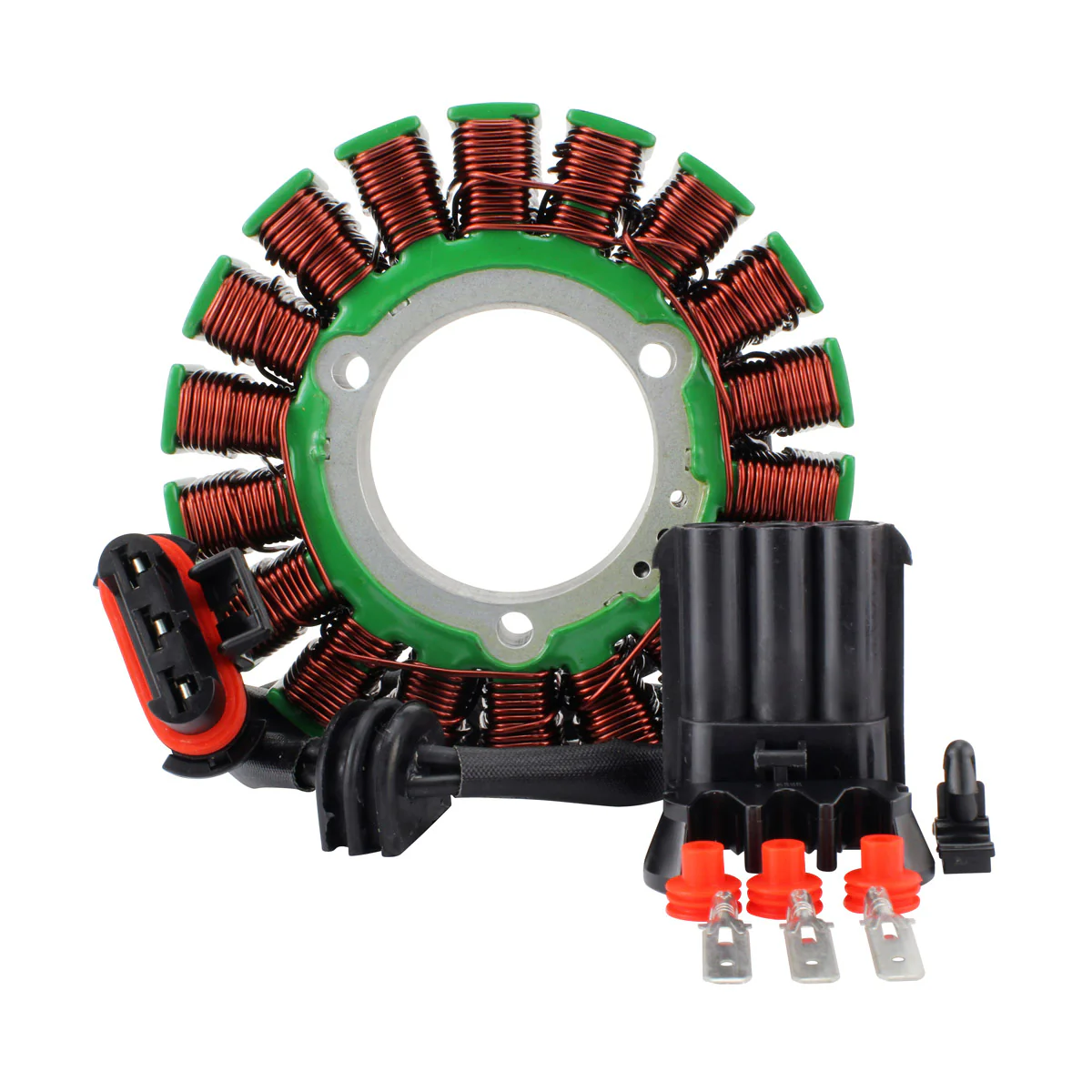

Generator Stator:

Brand new aftermarket generator stator

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side), as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

When using this stator on 2016-2018 Polaris Sportsman 570 models, please pay close attention to the stator and regulator wiring harness routing. The OEM wire routing was very poor, and allowed the harness to rub against the motor, damaging the insulation and damaging the charging system. We recommend routing your stator/regulator wiring outside of the frame rail, and securing the harness to the frame with zip ties. This should prevent any future damage to the wiring harness.

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.

Please Notethere are two possible stators for the RZR XP 900 and RZR 4 XP 900 models. This stator fits models built 3/16/12 and after (OEM# 4013013, stator thickness 19 mm). Always check in the 'Fits models' section and please compare to your original part before buying.

Brand new Mosfet Voltage Regulator Rectifier

Mosfet Voltage Regulator

• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

When using this regulator on 2016-2018 Polaris Sportsman 570 models, please pay close attention to the stator and regulator wiring harness routing. The OEM wire routing was very poor, and allowed the harness to rub against the motor, damaging the insulation and damaging the charging system. We recommend routing your stator/regulator wiring outside of the frame rail, and securing the harness to the frame with zip ties. This should prevent any future damage to the wiring harness.

Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts.If there is any doubt, have the battery load tested or replaced.

Please Note:There were 2 different regulators used on 2017-2018 Polaris Sportsman 570 models. Please compare your original to our pictures. Our regulator will ONLY replace an original that looks EXACTLY the same.

With design

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
